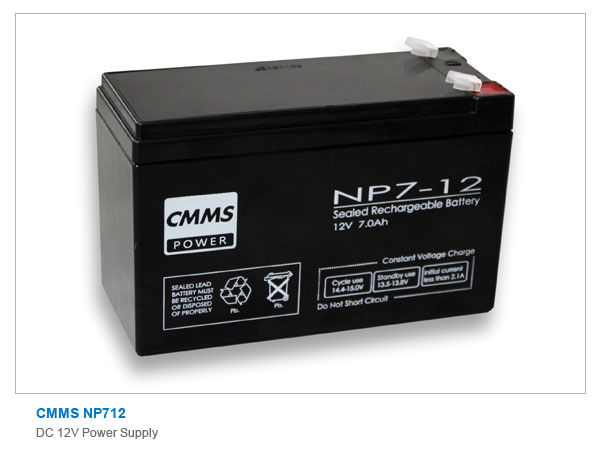

CMMS NP7-12
Characteristics
| Capacity (25℃ / 77°F) | |
|---|---|
| 20 Hour Rate (0.35A) | 7.00Ah |
| 10 Hour Rate (0.67A) | 6.65Ah |
| 5 Hour Rate (1.19A) | 5.95Ah |
| 1 Hour Rate (4.20A) | 4.20Ah |
| Capacity Affected By Temperature (20 Hour Rate) | |
| 40 ℃/104℉ | 105% |
| 25 ℃/77℉ | 100% |
| 0 ℃/32℉ | 85% |
| Internal Resistance | Full Charged Battery （at 25℃ / 77°F） 30m Ω |
| Charge (Constant Voltage) | |
| Cycle | Voltage 14.40V - 15.00V Initial Charging Current < 2.80A |
| Float | Voltage 13.50V - 13.80V Initial Charging Current < 1.05A |
| Nominal Voltage Rated Capacity (20 Hour Rate) | 12V 7Ah |
| Dimensions | 151 (L) X 65(W) X 94(H) mm |
| Weight (approx.) | 1.95KG |
